This evening I finished off two of the four remaining hoisting points. The two I finished are the ones at the front. Tomorrow night I'll finish off the the last two at the rear.

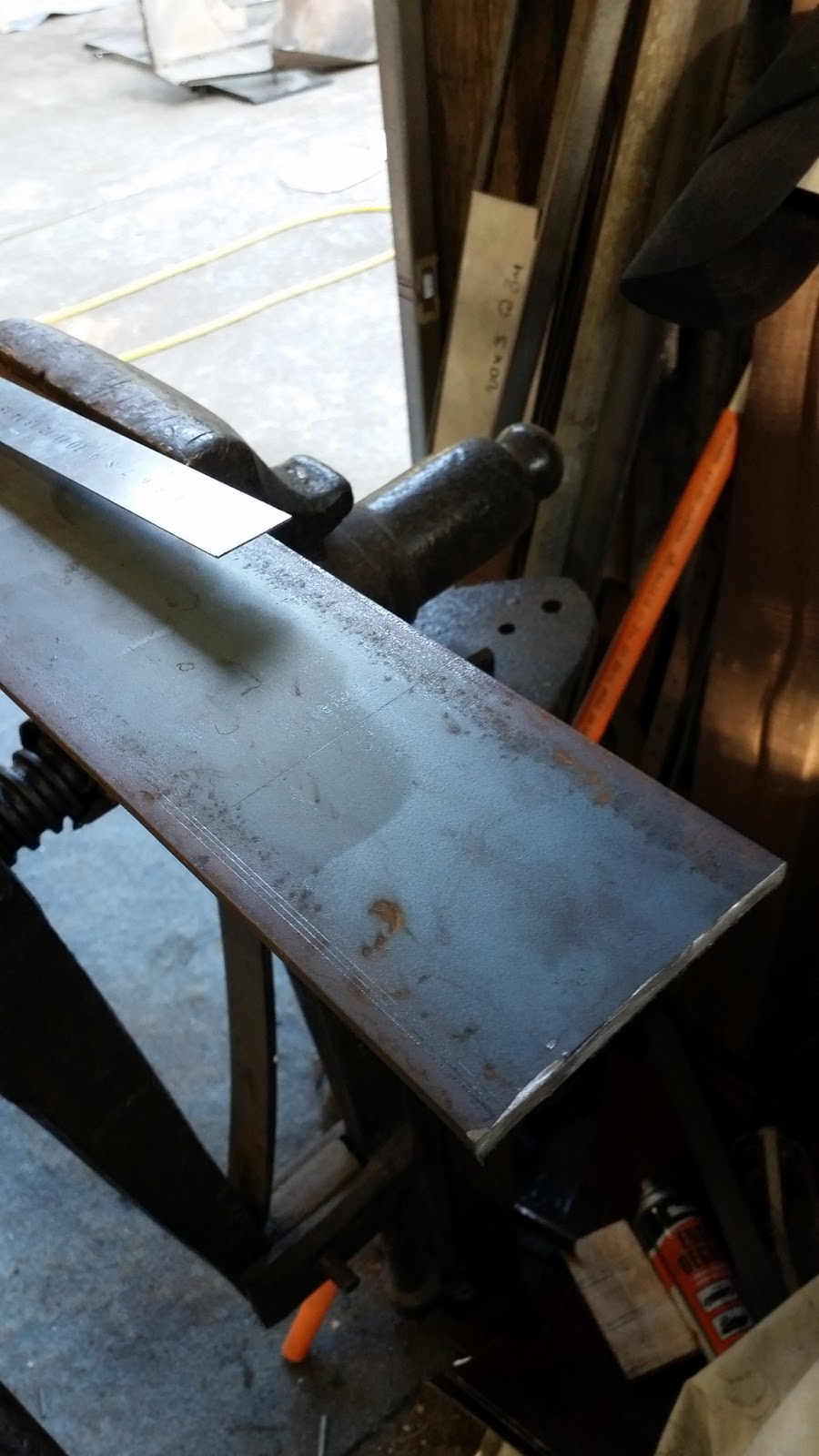

Fig. 1. Marking out the pieces to cut.
![]() |
Fig. 1. 30/12/2015 |
Fig. 2. The two pieces are cut to shape.
![]() |
Fig. 2. 30/12/2015 |

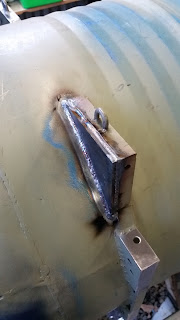

Fig. 3. The two hoisting points that need reinforcement. Each point will need to hold at least 200 kg and the current weld at the edge is two weak for that.
![]() |
Fig. 3. 30/12/2015 |
Fig. 4. I used a wire brush in the drill to scrap away the paint so it could be welded.
![]() |
Fig. 4. 30/12/2015 |
Fig. 5. Both parts have been ground at the curve so they can fit over the existing weld and they are now ready to weld in place.
![]() |
Fig. 5. 30/12/2015 |
Fig. 6. I cleaned up the welds along the whole ballast tank brackets to make them look a little nicer.
![]() |
Fig. 6. 30/12/2015 |
Fig. 7. The other side all cleaned up to.
![]() |
Fig. 7. 30/12/2015 |
Fig. 8. The left side clamped in place.
![]() |
Fig. 8. 30/12/2015 |
Fig. 9. Welding and ready for a clean.
![]() |
Fig. 9. 30/12/2015 |
Fig. 10. Both sides welded and cleaned up ready for an undercoat of paint.
![]() |
Fig. 10. 30/12/2015 |
Fig. 11. Done.
![]() |
Fig. 11. 30/12/2015 |
